• Jet Emitting Pipe Round and Flat Dripper Spacifecations (category "B") As Per IS:13488 - 2008

    Emitting Pipe
    Emitting Pipe



  • Nominal Diameter
    InSide Diameter mm
    Wall Thickness, mm
    		Dripper Spacing
    Coil Lenght In Meters
    Class-1 Class-2 Class-3 Class-4
    12mm 10.5mm 0.4 - 0.4 0.6 - 0.7 0.8 - 1.0 1.1 - 1.3 15cm to 150cm As Per Required
    16mm 14.2mm 0.5 - 0.6 0.7 - 0.9 1.0 - 1.2 1.3 - 1.5 15cm to 150cm As Per Required
    20mm 18.2mm 0.7 - 0.8 0.9 - 1.1 1.2 - 1.4 1.5 - 1.7 15cm to 150cm As Per Required
    Jet emitting pipe manufactured form high performance polyethylene.
    Cylindrical shapes permit wide flow path cross section.
    Four built in filters provides large filtration area to avoid clogging due to physical contaminations.
    Available in 2 and 4 LPH in dripper spacing 15,20,30,40,50,60,75,90, & 150 cms
    Minimum 100 microns filtration recommended
    UV stbilized.
    No enviromental effects.
    Inbuilt filters provides large filtration area to avoid clogging
    Clog resistant turbulent flow path

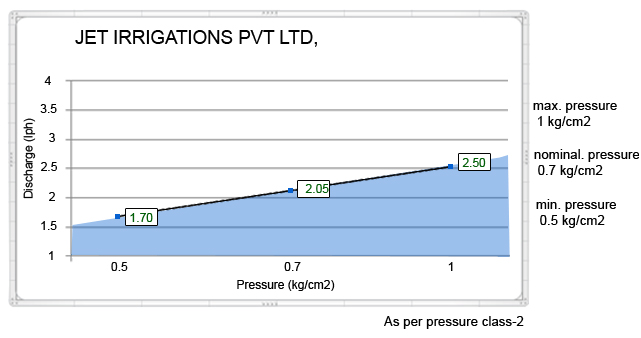

    (a) 12mm Discharge and Graph

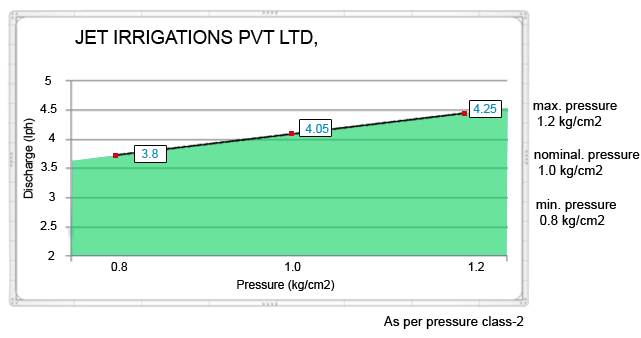

    (b) 16mm Discharge and Graph
    For Emitting Pipe Appication
    Fruit Crops Almond, Apple, Arecanut, Indian Gooseberry, Ber (Zizyphus), Banana, Cashew, Custard Apple, Cherry, Durian, Fig, Guava, Grape, Litchi, Lemon, Sweet Lime, Mango, Orange, Olive, Papaya, Pomegranate, Pear, Peach, Pistachio, Pineapple, Sapota, Strawberry, Star Fruit, Jack Fruit, Tamarind, Water Melon, Musk Melon
    Vegetable Crops Brinjal, Cucumber, Lettuce, Pepper, Potato, Pea, Tomato
    Field & Other Crops Corn, Cotton, Sugarcane, Tobacco, Betel vine, Mulberry
    Oil Seeds Groundnut, Sunflower, Jojoba, Castor
    Forage Crops Lucerne, Pastures, Turfs, Fodder
    Plantation Crops Cardamom, Coffee, Tea, Rubber, Spices, Oil Palm, Coconut
    Ornamentals Floricultural Plants, Rose, Gerbera, Carnation, Gladioli, Poinsettias, Chrysanthemum
    Forest Trees Eucalyptus, Casuarinas, Teak, Acacia, Bamboo, Neem, Dalbergia
